Louver cap shipped loose

MWI'S

LOUVERS

  • We offer a large color palette to match most rollformers metal panels

  • Over 100 colors available

  • All metal edges are hemmed for strength and easier handling

  • Louvers have approximately 1.5" nailing flange on all (4) sides

  • All 29 ga prepainted steel construction with bird screen

  • Louver size is actual rough opening size

  • Standard pack = 2 per carton; also available for individual purchase

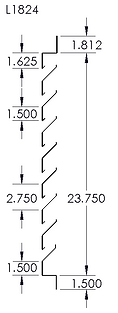

L1824

18"x24" steel louver

90 sq. inches of free area

4 lbs. each/8 lbs. carton

L2424

24"x24" steel louver

126 sq. inches of free area

7 lbs. each/14 lbs. carton

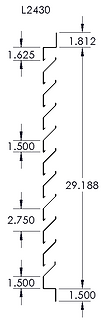

L2430

24"x30" steel louver

157 sq. inches of free area

8 lbs. each/16 lbs. carton

L3030

30"x30" steel louver

202 sq. inches of free area

9 lbs. each/18 lbs. carton
