UNI-VENT II

The Universal Ventilation System

Tested up to 110mph wind driven rain with NO measurable leakage

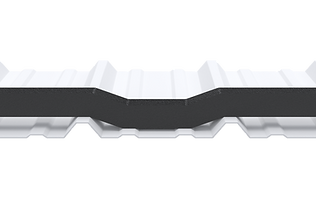

Uni-Vent II will conform to virtually any roof panel configuration. It compresses and fills every void between your ridge cap and the roof panel. Factory applied glue strips allow the installer to roll out Uni-Vent II and apply it to the roof panel, even in windy conditions. Then, any standard ridge cap can finish off the installation.

  • Material is 2" wide with standard thickness of 1"

  • Stock one product to match any roof panel configuration

  • Use any manufacturers ridge cap

  • Use on any roof pitch from 2/12 to 20/12

  • Thicker product available for R-Panel and other higher rib configurations

  • Applied to ridge with a dual strip 1/4" from edge of where Ridge Cap will be installed; Ridge Cap applied overtop



Physical Properties:

  • Pure Polyurethane Foam

  • Vinyl Coating

  • UV Stabilized/Fire Retardant

  • Continuous Double Glue Strip



UNIVERSAL RIDGE CLIP

For standing seam roofs

This 22 ga. galvanized clip provides a large fastening area for any style ridge cap on a standing seam roof

With this clip, no fasteners penetrate the panel where they will be exposed to the weather and no fasteners need to penetrate the standing seam

When used with our Uni-Vent, this system provides the lowest cost ridge ventilation system for a standing seam roof on the market today

  • Quick and easy method of terminating the top of the roof panel

  • Eliminate field cutting and installation of a “z” closure

  • Large fastening area for any ridge cap

  • Ventilation takes place between the standing seams

  • Fasteners do not penetrate the standing seams



UNI-VENT PRO-SERIES

  • Easy to install; 20' per roll

  • Use any manufacturers ridge cap

  • Withstands 100 mph wind-driven rain

  • Use on any roof pitch from 2/12 to 20/12

  • Material is 2" wide with standard thickness of 1"

  • Standard 9" oc profile matches the roofing profile

  • Same great performance as Uni-Vent II



Physical Properties:

  • UV Stabilized/Fire Retardant

  • Continuous Double Glue Strip

  • Pure Polyurethane Foam

  • Vinyl Coating



UNI-VENT III-DT

The Universal Ventilation System

Uni-Vent III-DT  will conform to virtually any roof panel configuration. It compresses and fills every void between your ridge cap and the roof panel. Factory applied glue strips allow the installer to roll out Uni-Vent III-DT. Applied to Ridge Cap on the ground with a dual strip 1/4" in from each edge, then installed onto the ridge.

  • Material is 2" wide with standard thickness of 1"

  • Stock one product to match any roof panel configuration

  • Use any manufacturers ridge cap

  • Use on any roof pitch from 2/12 to 20/12

  • Thicker product available for R-Panel and other higher rib configurations



Physical Properties:

  • Standard 1” x 2” x 10’ pieces (10/box)

  • Stock one product to match any roof panel configuration

  • Apply directly to ridge cap

  • Pure Polyurethane Foam

  • Vinyl Coating

  • UV Stabilized/Fire Retardant

  • Continuous Double Glue Strip

Available in 100' packages (10 - 10' rolls per box)
